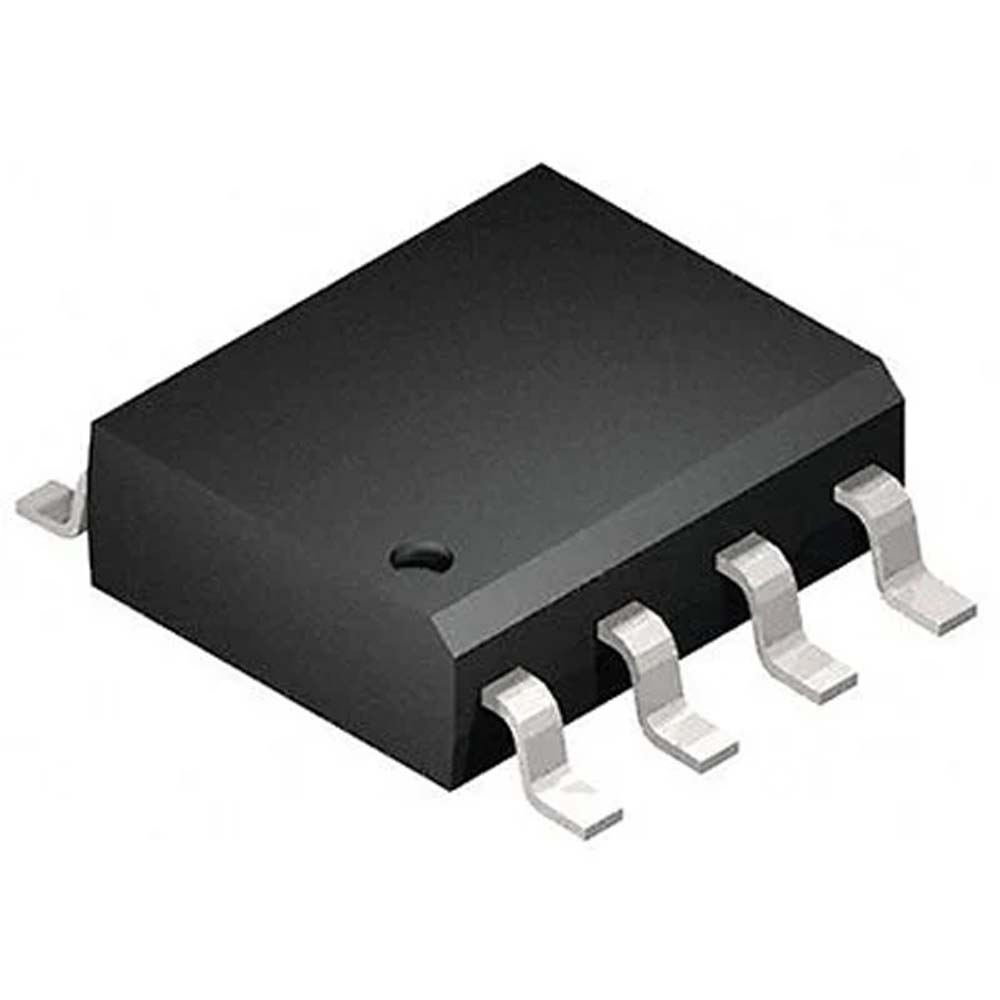

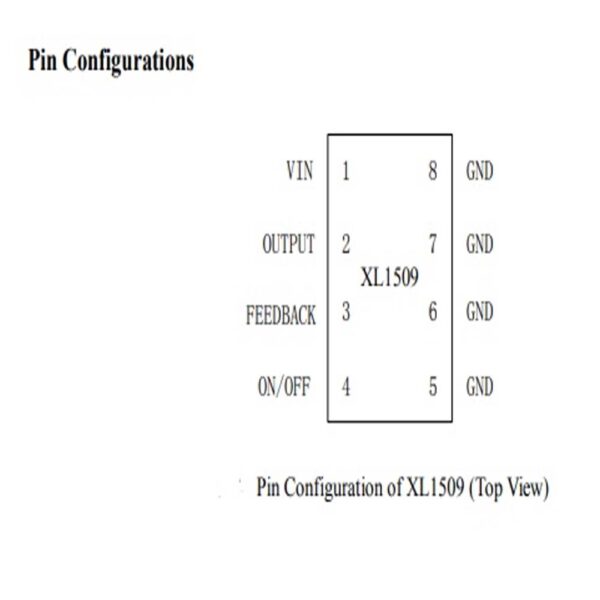

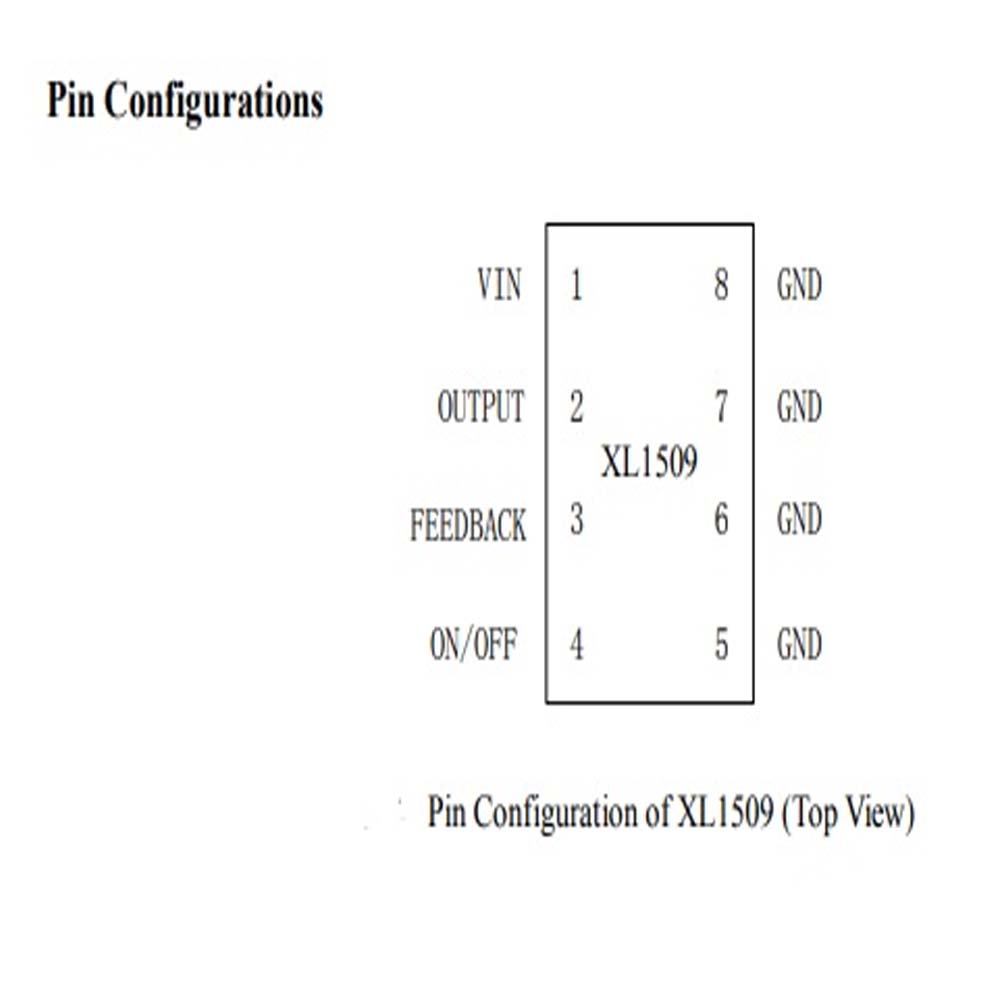

Xl1509-5.0 E1 SOP8L Buck DC to DC Converter IC – (Pack of 2)

The XL1509 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and includes internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over-current protection function is built inside. When the second current limit function happens, the operation frequency will be reduced from 150KHz to 50KHz. An internal compensation block is built in to minimize external component count.

Features :

1.  Wide 4.5V to 40V Input Voltage Range
2. 3.3V,5V,12V, and adjustable versions
3.  Output Adjustable from 1.23V to 37V
4.  Maximum Duty Cycle 100%
5.  Minimum Drop Out 1.5V
6.  Fixed 150KHz Switching Frequency
7.  2A Constant Output Current Capability
8.  Internal Optimize Power Transistor
9.  High efficiency
10.  Excellent line and load regulation
11.  TTL shutdown capability
12.  ON/OFF pin with hysteresis function
13.  Built-in thermal shutdown function
14.  Built-in current limit function
15.  Built-in second current limit function
16.  Available in SOIC8 package

Applications :

1.  LCD Monitor and LCD TV
2.  Digital Photo Frame
3.  Set-up Box
4.  ADSL Modem
5.  Telecom / Networking Equipment

You may also looking :

1 . SOP8 Tssop8 Ssop8 To Dip 8 Adapter

Package Includes :

1 x Xl1509-5.0 E1 SOP8L Buck DC to DC Converter IC – (Pack of 2)
