ZK-BM1 10A Dual DC Motor Drive Dodule Forward and Reverse PWM Speed Regulation Dimming 3-18v low Voltage High Current

Compare

Specifications:

  • Work voltage: DC 3.0V-18V
  • Signal voltage: DC 3.0V-18V
  • Work current:10A for each channel
  • Support PWM frequency:0-2KHz
  • Duty cycle:0%-100%
  • Work Temperature:-25℃~85℃
  • Work Humidity:5%~95%RH

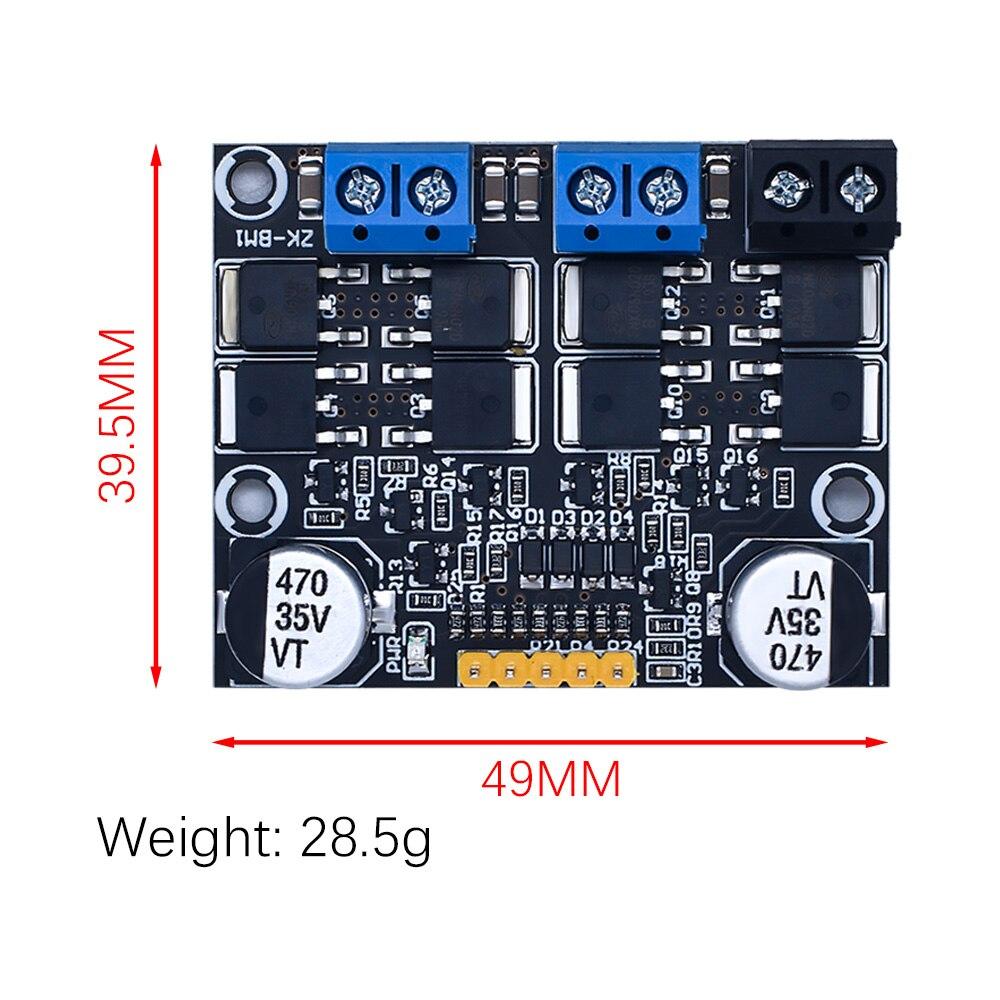

  • Module Size:49*39*14mm

₹85,550.00

Compare

ZK-BM1 is a 10A Dual DC Motor Driver Module Forward Reverse Controller. Users can trigger and control the forward and reverse rotation of the controlled equipment according to needs, such as automatic curtain switch, automatic control of running stroke.

Features:

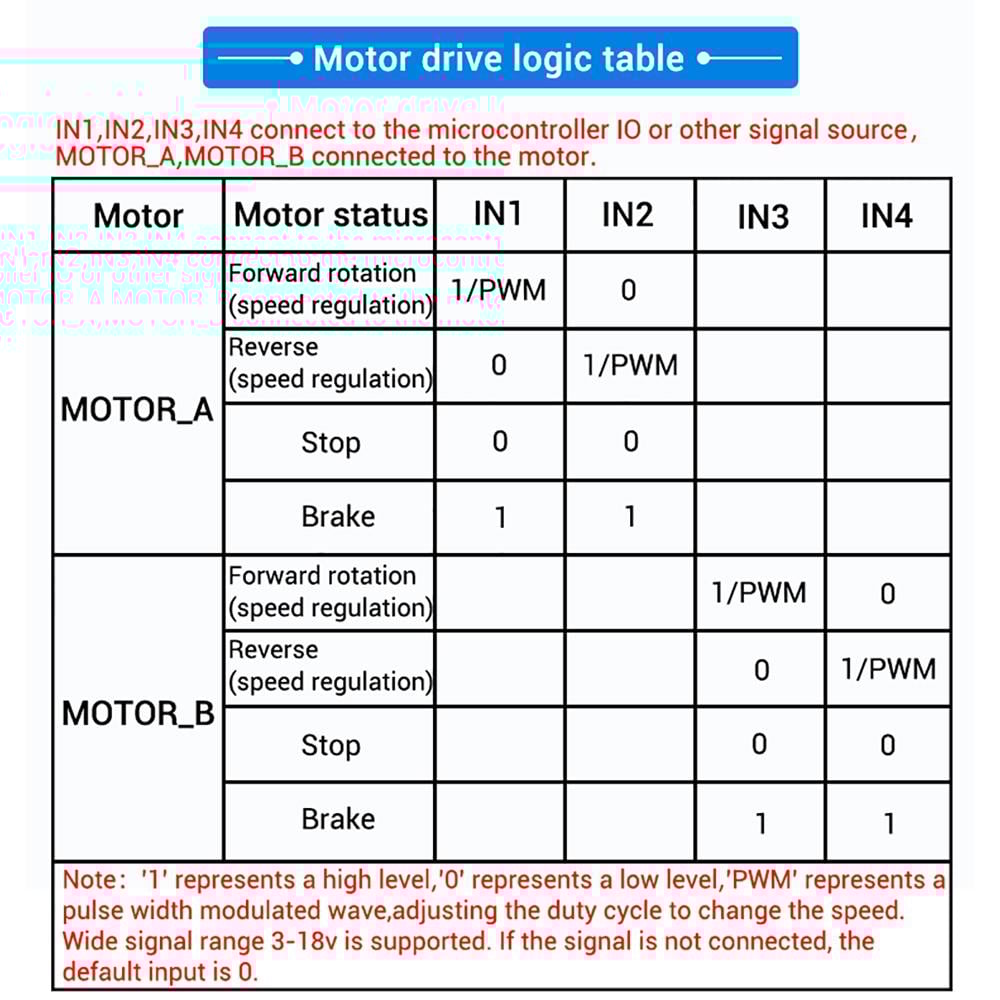

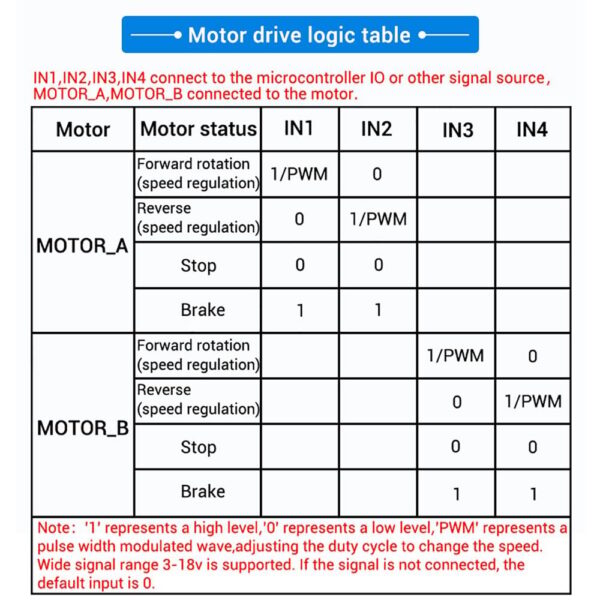

  • Forward and Reverse control

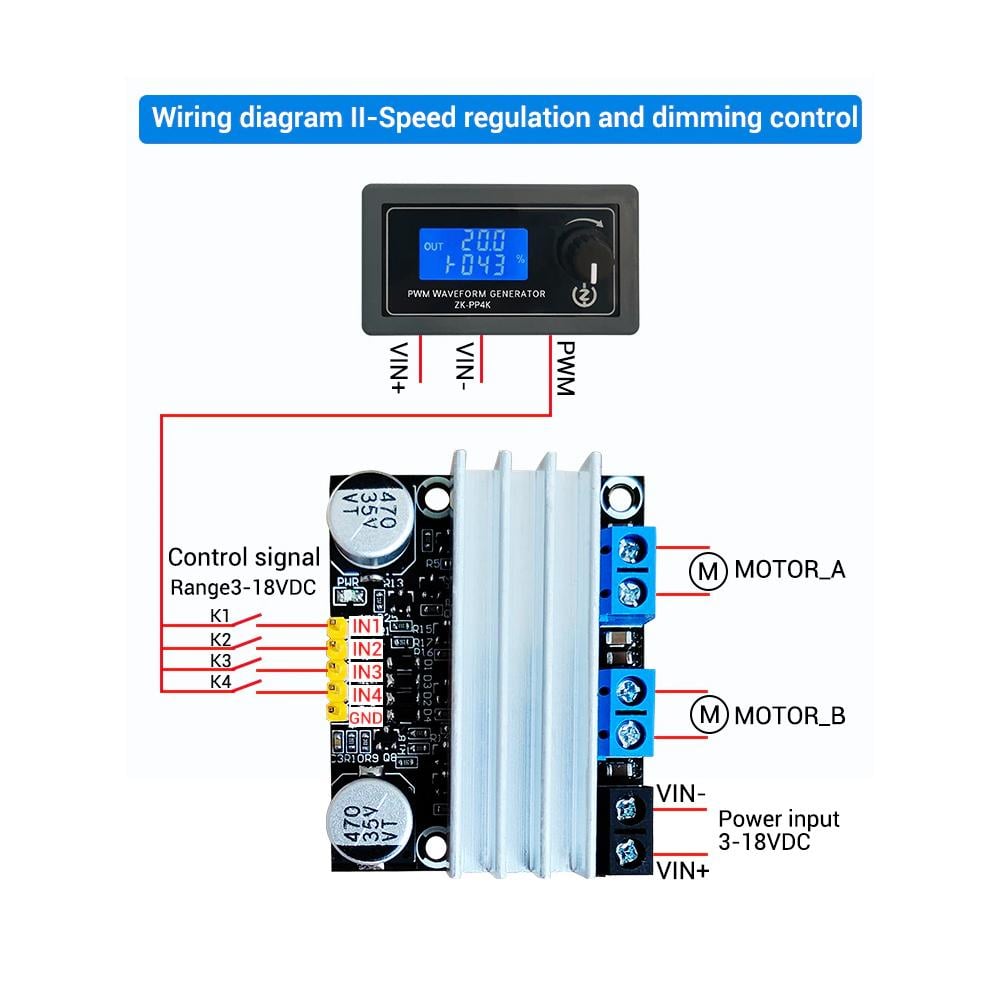

  • TTL level drive and PWM adjust speed
  • Dual channel independent control

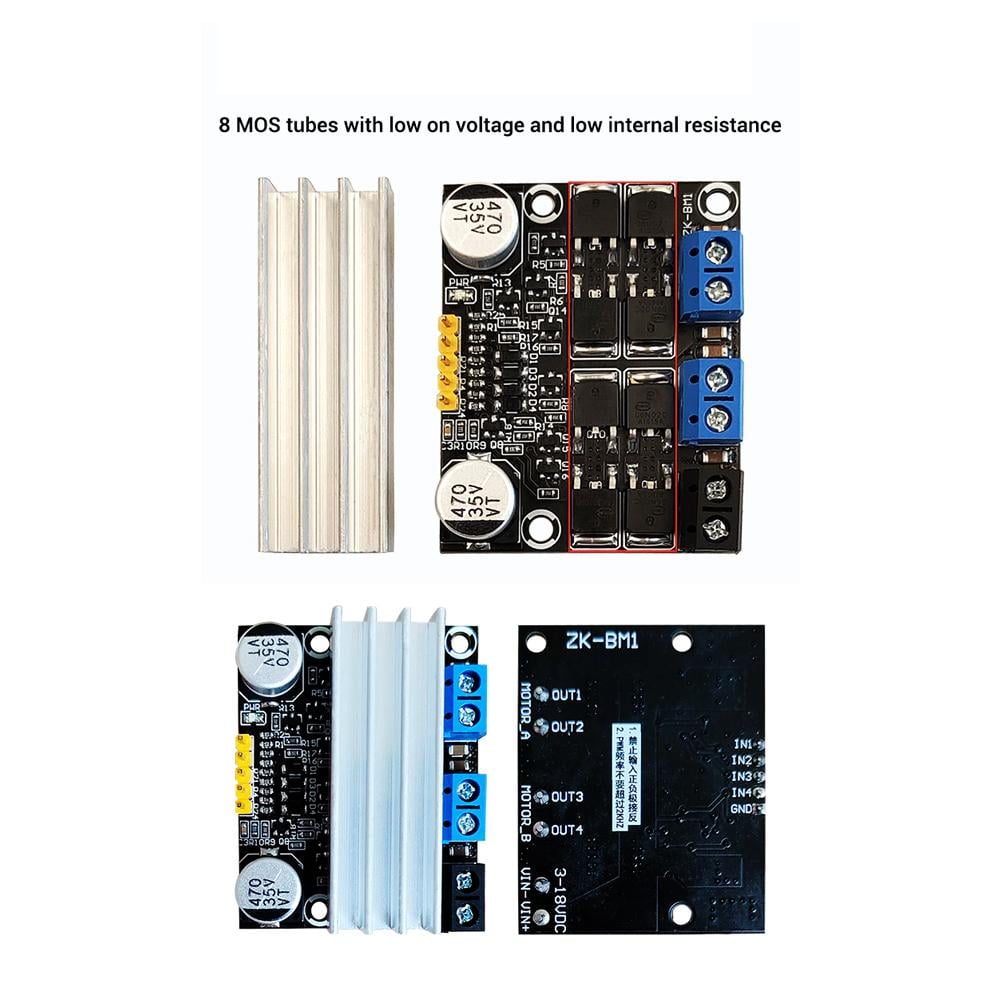

  • MOS control circuit

Packing List:

1 x ZK-BM1 10A Dual DC Motor Drive Module Forward and Reverse PWM Speed Regulation Dimming 3-18v low Voltage High Current
