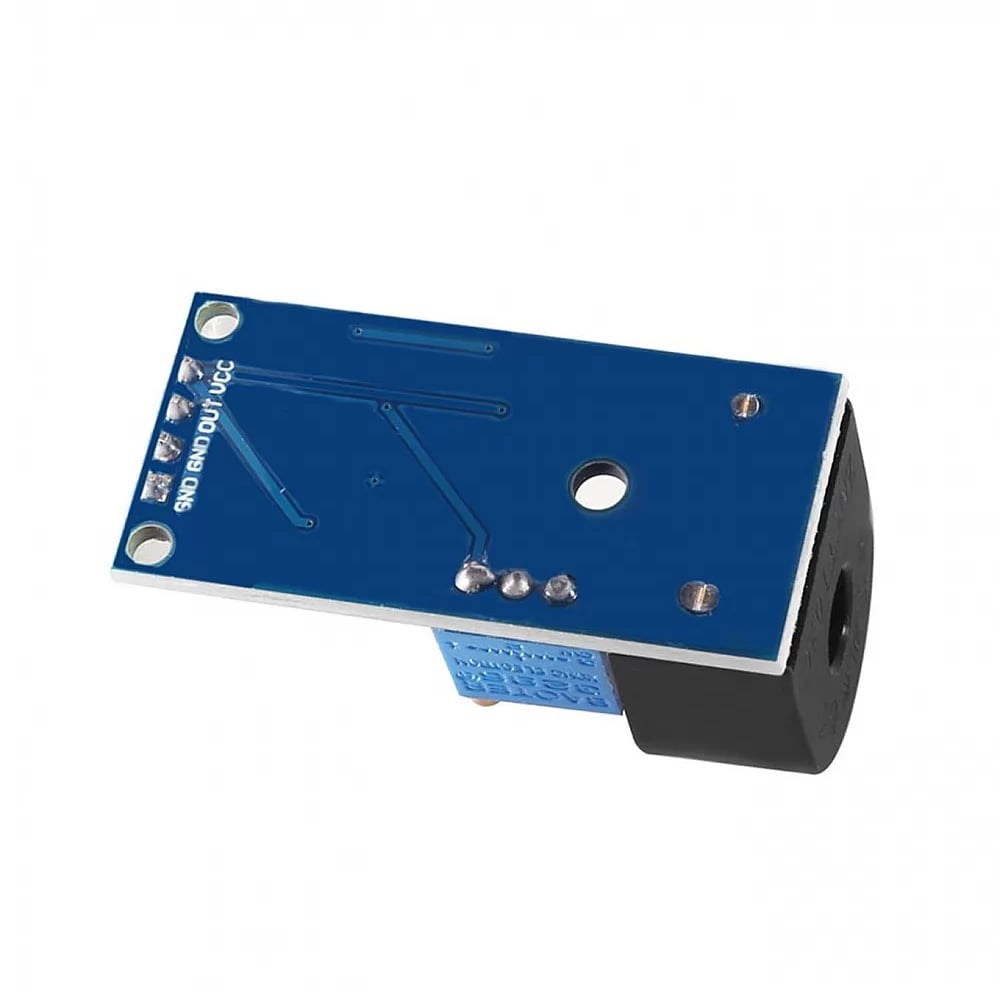

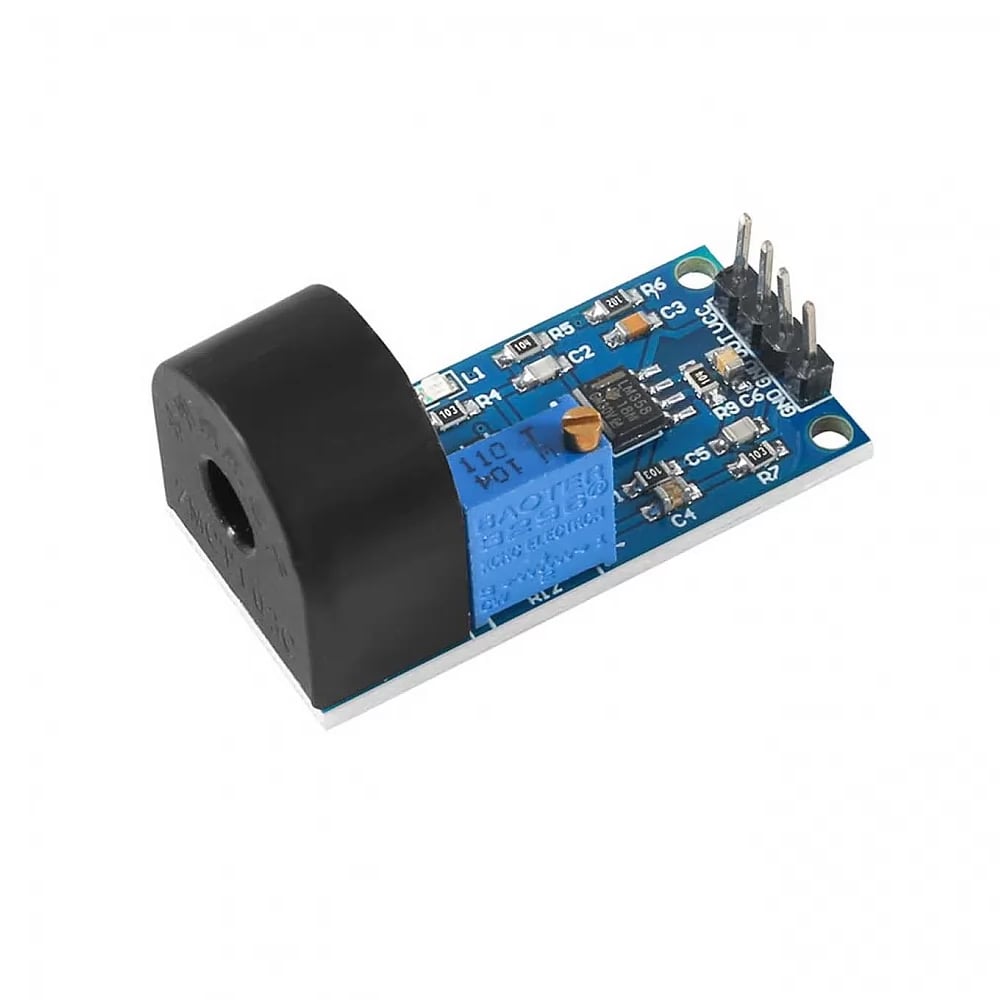

ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module
ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module - Image 2
ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module - Image 3
ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module - Image 4
ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module - Image 5

ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module

Compare

Specifications:

  • Current Range: 0 to 5A AC
  • Rated Input Current: 5A AC
  • Output Voltage: 0 to 1V AC (proportional to the input current)
  • Turn Ratio: 1000:1 (primary to secondary winding ratio)
  • Accuracy Class: 0.5
  • Frequency Range: 50Hz to 60Hz
  • Core Material: High-quality ferrite core
  • Construction: Epoxy encapsulated for durability and reliability
  • Mounting: PCB mountable with through-hole pins
  • Dimensions:
    • Width: 17mm
    • Height: 13mm
    • Depth: 12mm
  • Weight: Approximately 10g

₹10,952.00

Compare

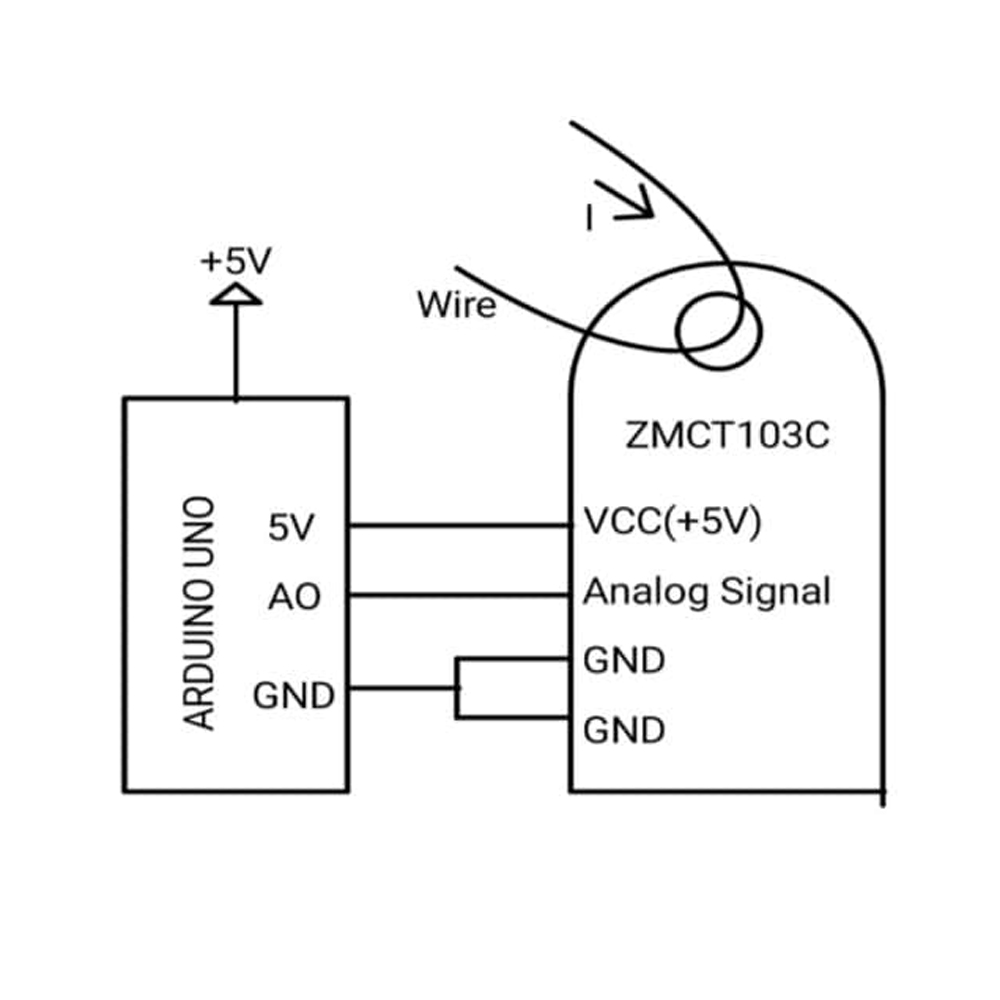

This AC current sensor module is based on ZMCT103C PCB mount mini current transformer. This module provides a direct analog output which is proportional to the input current. ZMCT103C AC current sensor Module can be easily interfaced to Micro-controller or Arduino.

You may also like :

Arduino Uno

USB

Package Includes :

1 x ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module
